Home 2011 Toyota Avalon Base 3.5L V6 - Gas Fuel System Components

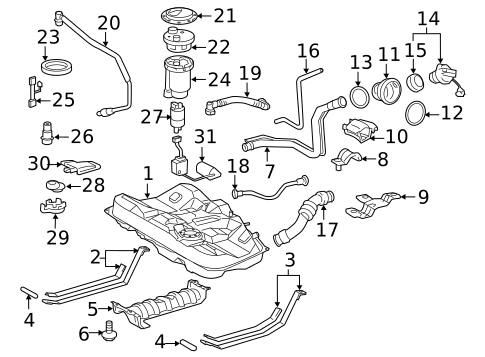

Fuel System Components for 2011 Toyota Avalon

No.

Part # / Description / Price

Fuel Tank

MSRP $882.91

$594.50

Modern Toyota

77001-06112

Toyota

Avalon. Solara. Camry. 2.4l. Usa built. Camry. 3.0l, 3.3l. 2.4L federal emissions. Japan built.

Mount Strap

MSRP $99.45

$66.89

Modern Toyota

77601-07010

Toyota

Tank Strap, Right

California emissions, japan built. 2004-06. 2.4L, 2007-08. 3.3L, 2007-08. Federal emissions, 3.5L, us built. Federal emissions, 2.5L, us built, se.

7760207010 - Fuel System: Tank Strap for Toyota Image image

Mount Strap

MSRP $99.45

$66.89

Modern Toyota

77602-07010

Toyota

Tank Strap, Left

2004-06. 2.4L, 2007-08. 3.3L, 2007-08. Federal emissions, 3.5L, us built. California emissions, us built, with se.

9025008019 - Fuel System: Tank Strap Pin for Toyota Image image

Mount Strap Pin

MSRP $8.30

$5.88

Modern Toyota

90250-08019

Toyota

Tank Strap Pin, Right

2004-06. Fuel tank & components. Pin. 2.4L, 2007-08. 3.3L, 2007-08.

7763106060 - Fuel System: Protector for Toyota Image image

Tank Shield

MSRP $114.76

$77.19

Modern Toyota

77631-06060

Toyota

Protector

2.4L, 2007-08. 3.3L, 2007-08. California emissions, japan built. Federal emissions, 3.5L, japan built. Federal emissions, 2.4L, japan built.

Floor Pan Heat Shield Bolt

MSRP $1.15

$0.91

Modern Toyota

90080-11169

Toyota

Protector Bolt

3.5L. 2.4L. Fuel tank & components.

7720107070 - Fuel System: Filler Pipe for Toyota Image image

Filler Neck

MSRP $326.34

$219.50

Modern Toyota

77201-07070

Toyota

Filler Pipe

Avalon.

Filler Pipe Upper Support

Modern Toyota

77217-07010

Toyota

Upper.

View Details

7721607010 - Fuel System: Filler Pipe Lower Support for Toyota Image image

Filler Pipe Support

MSRP $32.07

$21.57

Modern Toyota

77216-07010

Toyota

Filler Pipe Lower Support

Lower.

7727807030 - Fuel System: Filler Pipe Protector for Toyota Image image

Filler Neck Protector

MSRP $39.58

$26.62

Modern Toyota

77278-07030

Toyota

Filler Pipe Protector

Federal emissions, 2.4L. Federal emissions, 2.5L, us built. Federal emissions, 3.5L, us built. Japan built. California emissions.

Shield

MSRP $51.54

$34.67

Modern Toyota

77291-AC030

Toyota

Pocket O-Ring

MSRP $6.31

$4.46

Modern Toyota

77391-20030

Toyota

Shield Retainer Ring

Inner, us built. 2004-06, outer. Fuel tank & components, upper. 2.4L, 2007-08, outer. 3.3L, 2007-08, outer.

Fuel Tank Filler Neck Retaining Ring

MSRP $4.81

$3.40

Modern Toyota

77391-02040

Toyota

Shield Retainer Ring

Fuel Tank Cap

MSRP $26.76

$18.00

Modern Toyota

77300-06040

Toyota

Filler Cap

Fuel Tank Cap Gasket

MSRP $25.60

$17.22

Modern Toyota

77316-06070

Toyota

Filler Cap Gasket

Without hybrid. 4wd. Federal emissions, 2.5L. 2wd, 2005-08. 3.3L, 2007-08. 2.4L, 2007-08. 2.4L federal emissions. US built. California emissions. Japan built.

Breather Tube

MSRP $76.84

$51.68

Modern Toyota

77226-07010

Toyota

Connector Hose

MSRP $73.70

$49.57

Modern Toyota

77213-06041

Toyota

Filler Hose

2004-06. 2.4L, 2007-08. 3.3L, 2007-08. 2.4L federal emissions. US built.

Suction Tube

MSRP $70.52

$47.43

Modern Toyota

77203-06020

Toyota

Federal emissions, 3.5L, us built. 2004-06. 2.4L, 2007-08. 3.3L, 2007-08.

Vent Hose

MSRP $28.42

$19.12

Modern Toyota

77404-06050

Toyota

Federal emissions, 3.5L. 3.3L, #1. 2.4L. 3.0 & 3.3L, 2004-06. Federal emissions, 2.5L. California emissions. Vent hose.

Suction Tube

MSRP $66.85

$44.96

Modern Toyota

77209-06030

Toyota

Pressure Line

Federal emissions, 3.5L. 2004-06. Federal emissions, 2.4L. Federal emissions, 2.5L. 2.4L, 2007-08. 3.3L, 2007-08. Japan built.

7716833050 - Fuel System: Upper Plate for Toyota Image image

Suction Tube Plate

MSRP $41.07

$27.62

Modern Toyota

77168-33050

Toyota

Upper Plate

Outer. California emissions. Federal emissions, 3.5L. Vent tube. Federal emissions, 2.4L. Fuel pump & components. Federal emissions, 2.5L. 2.4L, 2007-08. 3.3L, 2007-08.

7702406020 - Fuel System: Lower Plate for Toyota Image image

Suction Valve

MSRP $57.54

$38.70

Modern Toyota

77024-06020

Toyota

Lower Plate

Inner. Federal emissions, 3.5L. Fuel suction. Fuel pump & components. 3.3L, 2007-08.

Fuel Pump Tank Seal

MSRP $23.27

$15.65

Modern Toyota

77169-33020

Toyota

Lower Plate Gasket

For Fuel Tank SUCTION Tube; Fuel Pump Bracket; Fuel SUCTION Tube Set. 2004-06. 4wd, 2006. To 07/05. 4wd, 2003-05. 2wd, 2003-04. 2.4L, 2007-08. 3.3L, 2007-08. Federal emissions, 2.5L. Fuel pump & components, 2001-03. Federal emissions, 2.4L, japan built.

233000A020 - Fuel System: Fuel Filter for Toyota Image image

Filter; Filter Assembly

MSRP $47.89

$32.21

Modern Toyota

23300-0A020

Toyota

Fuel Filter

Fuel Pump Harness

MSRP $12.63

$8.94

Modern Toyota

77785-06020

Toyota

Harness

2004-06. 2003-04. 3.3L, 2007-08. 4wd, 2006.

2328020060 - Fuel System: Pressure Reg for Toyota Image image

Fuel Injection Pressure Regulator

MSRP $113.09

$76.07

Modern Toyota

23280-20060

Toyota

Pressure Reg

Fuel Pump

MSRP $465.39

$313.36

Modern Toyota

23221-0A040

Toyota

Fuel Pump Cushion

MSRP $25.93

$17.44

Modern Toyota

23249-0A020

Toyota

2004-06. Fuel pump & components. 3.3L, 2007-08.

Fuel Pump Support Bracket

MSRP $17.95

$12.71

Modern Toyota

77175-06020

Toyota

Fuel Pump Support

Japan built. Federal emissions, 3.5L. 2004-06. 3.3L, 2007-08.

232170C010 - Fuel System: Strainer for Toyota Image image

Filter, Fuel Pump

MSRP $25.10

$16.88

Modern Toyota

23217-0C010

Toyota

Strainer

Fits Avalon, Camry, Solara, Tacoma Fuel Pump - Repair or ReplaceIf your Engine Cranks but won't start, your Toyota may need a new fuel pump. Camry. Avalon. 2004-06. In tank. 3.3L, 2007-08. 4 wheel drive. For fuel pump. Without Solara. Fuel pump & components. Federal emissions, 3.5L.
